MIXING EQUIPMENTS

We offer to our client a wide range of Mixing Equipment that includes ribbon blender, double cone blender, paddle mixer etc.

MIXING MACHINE

Download Brochure

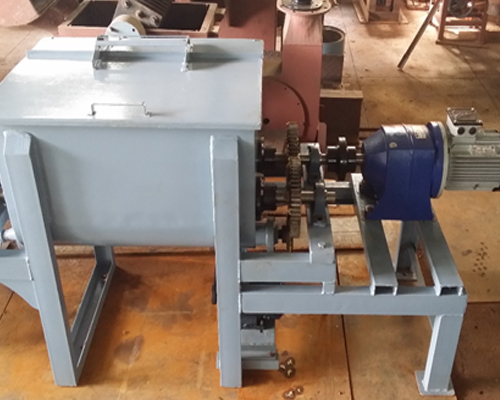

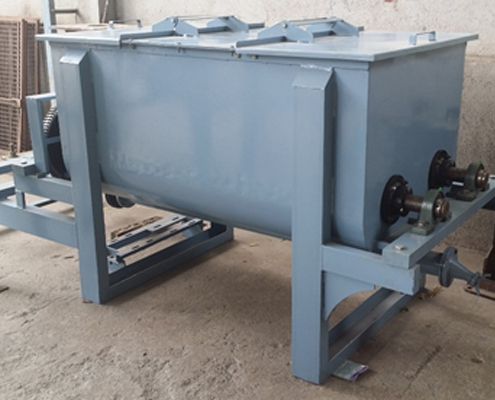

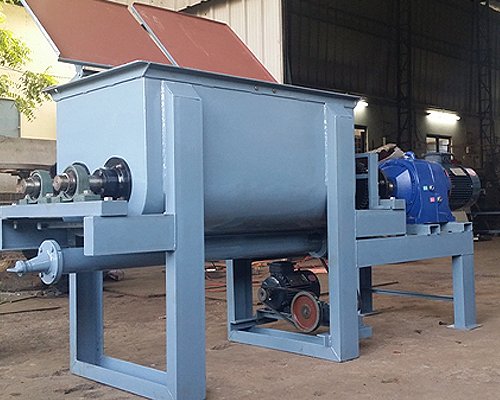

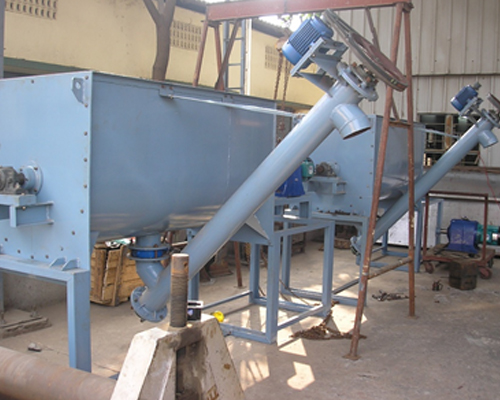

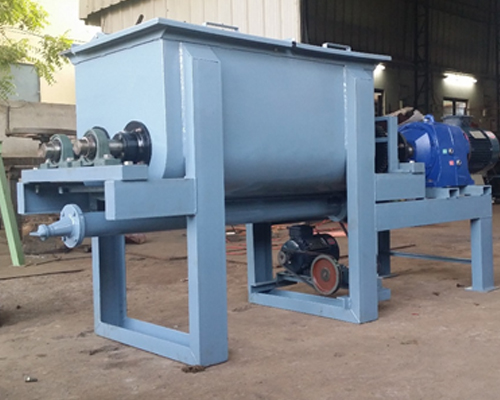

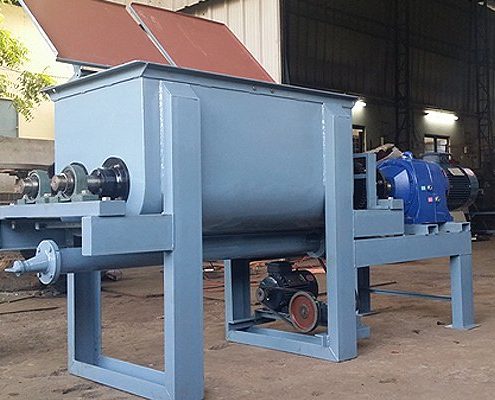

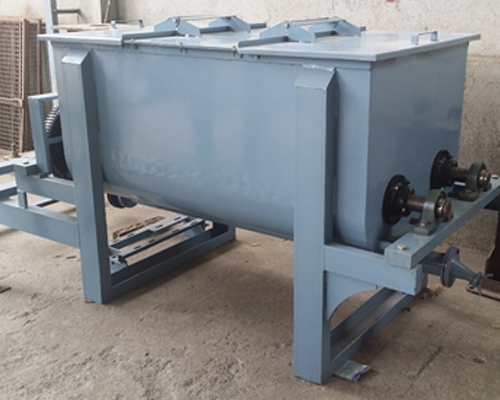

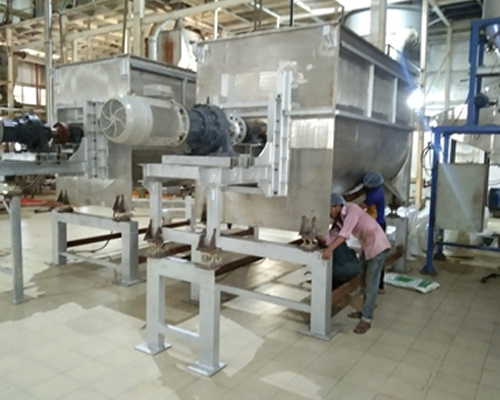

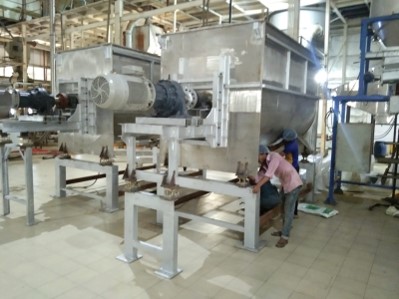

Ribbon Blender

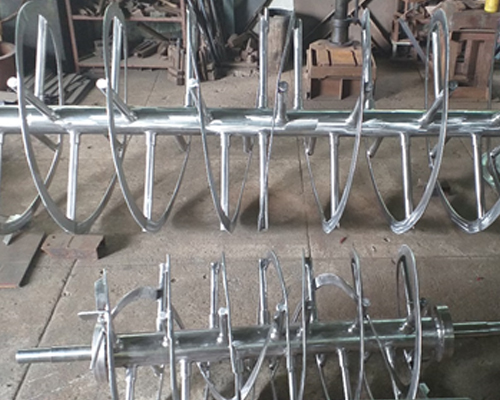

The Doris Ribbon Blender is most suitable for Mixing Dry Products. The Blender uses large surface area to volume ratio while mixing. Available in standard sizes in Mild Steel & Stainless Steel. Ribbons made in Double Helix Agitator for fast & quick Mixing. Mixer is designed for easy cleaning & Quick batch changing. Every Ribbon Blender is backed up by service facilities offered by our company.

Type:	Vessel Capacity in Liters	Mixing Capacity in Liters	Motor H.P.
DRB 100	300	100	3
DRB 250	800	250	5
DRB 500	1500	500	10
DRB 1000	3000	1000	20

Paddle Mixer

The Doris Double Paddle Mixer assists in mixing every particle into the other thus producing homogeneity. The Blades Scoop, lift and tumble materials in a gentle through mixing action. Blender can give excellent mixing even with small batches as low as 25%. It has short mixing time. Gently Mixing and Low Operating Cost with High Productivity. It has large discharge gate for quick discharge. The Mixer is available in Mild Steel and Stainless Steel in various capacities. It is designed for easy Cleaning and Quick batch changing.

Every Paddle Mixer is backed up by service facilities offered by our Company.

Type

Vessel

Volume

Mixing

Volume.

Motor

H.P

Area In Feet

DMM – 30

280

150

4 X 3

DMM – 48

450

300

6 X 3

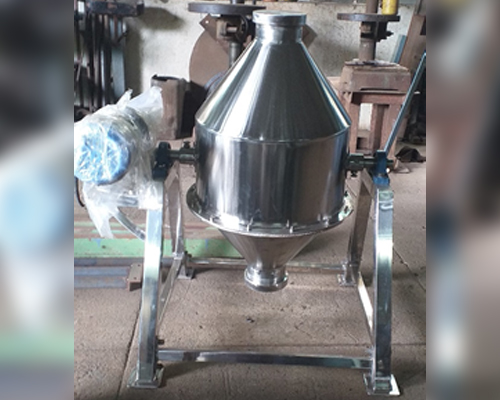

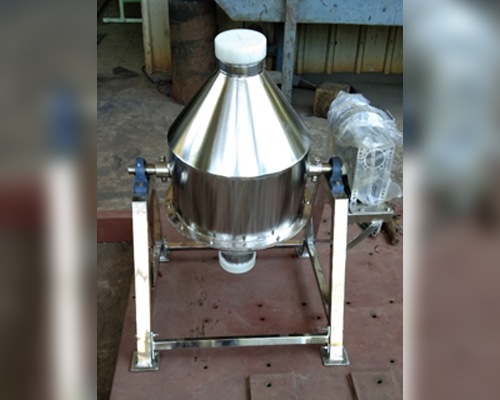

Double Cone Blender

The Doris Double Cone Blender have been developed to ensure efficient performance for a wide range of application. The Deflector provided in the Blender results in homogenous blending regardless of particle size. The Blender ensures that there is no unmixed product. The Blender has low Energy consumption and has hygienic design with smooth Interior. The Blender is manufactured in Mild Steel or Stainless Steel as required.

Every Double Cone Blender is backed up by service facilities offered by our Company.

Model	Blending Capacity in Liters	Motor H.P.	Production In Kgs / hr
DDCB 50	100	2	50 – 75
DDCB 100	200	3	100 – 150
DDCB 250	500	5	250 – 300

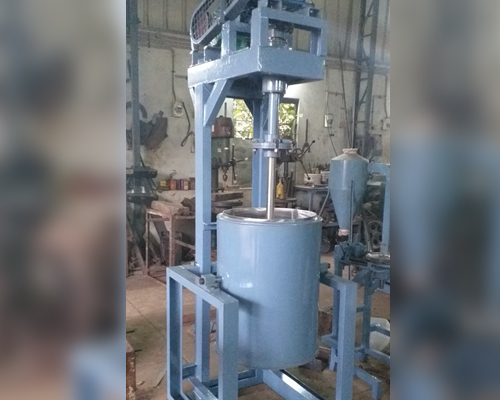

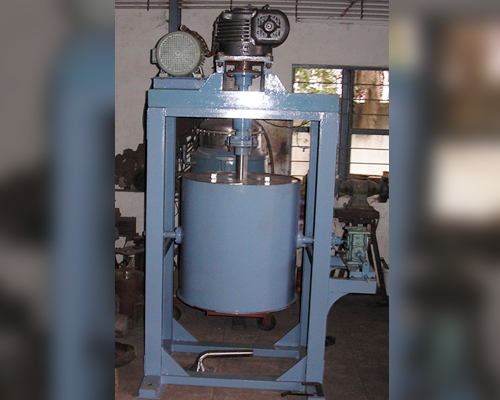

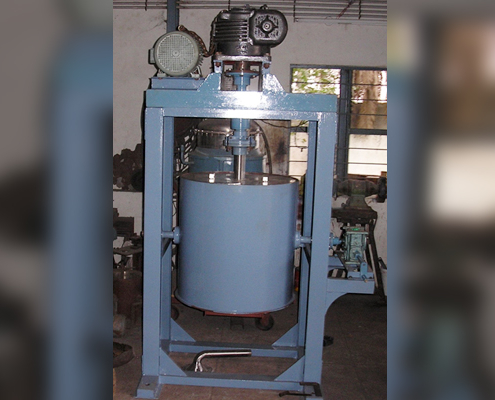

Attritor

The Attritor is a high output, Fine Grinding machine. They are very economical and consume less power per liter of paint. It gives a fine homogeneous mixing. It has a water jacket to control grinding temperature. It has a rugged frame for continuous and efficient operations. It has low maintenance cost and is safe and user friendly. The machine has easy access for cleaning. The machine requires low H.P. rating and a small area. The Doris Attritor is value for money and is available in various sizes.

Type	Vessel Volume (Ltr)	Working Capacity (Ltr)	Motor H.P	Grinding Media Steatite / Steel
DATT-25	30	8-12	3	30
DATT-50	100	25-40	5	100
DATT-100	220	50-90	10	200
DATT-200	416	104-125	20	400

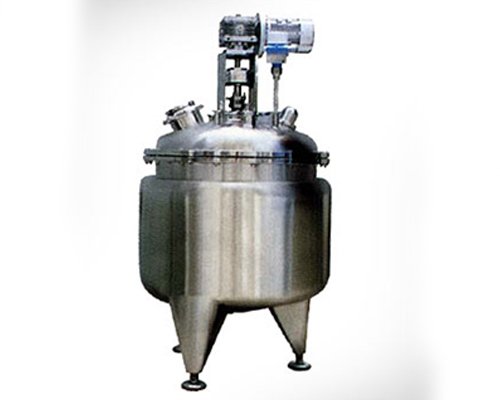

Jacketed Reaction Vessel – S.S – 304

The Vessel is fabricated in S. S 304 with shell thickness of 4 mm and top and bottom dish made of S. S. 304, Torispherical dished. The vessel is vertically upright. Provided with Anchor type agitation system and foam beater. Stuffing box has Teflon inserted gland packing. The shaft is supported with sealed flanged bearing mounted to the Gear Box at one end.

The Vessel has charging flanges. Sight glass port, Thermo – couple well, and outlet pipe at the bottom. The Vessel has flanged top cover and is clamped with nuts and bolts to the vessel. The Vessel is supported with 4 numbers legs mounting.

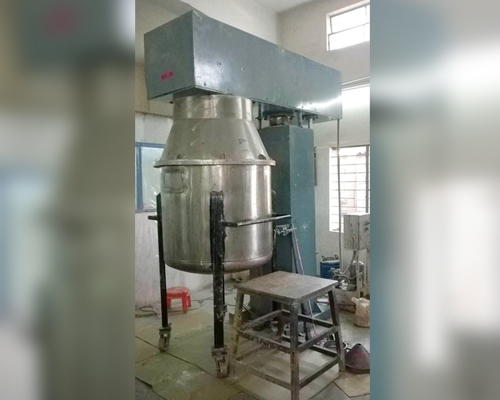

Planetary Mixer

Planetary Mixer is a rugged versatile mixer used for Mixing, Liquid with solids to produce the final product. Planetary Mixer consist of Beater shaft impeller. Two nos. planetary gear mixers with Wisk. Which rotate in cylindrical orbit. The Complete system can be lifted up so as to release from the mixing vessel. Vessels of different capacity denote their output. Power pack provided with electrical control.

Volume

Hydraulic

Beater Motor

Mixing Motor

250 Liters

2.0 HP

5.0 HP

500 Liters.

3.0 HP

10 HP
